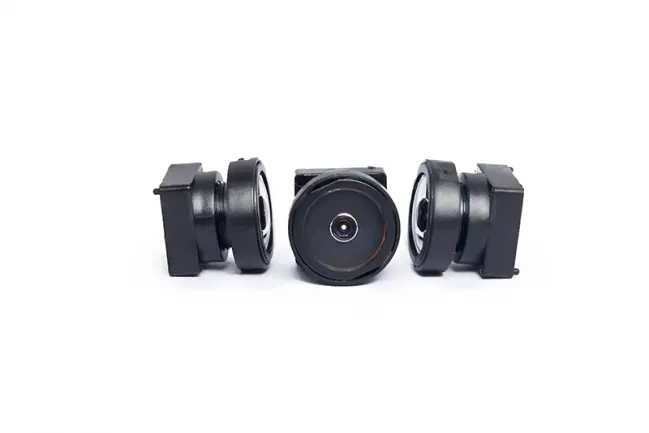

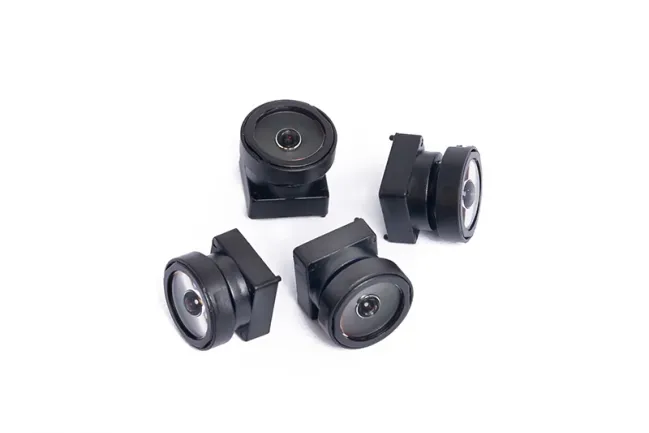

Medical Lens HR0502A

Technical Parameter:


Model No.HR0502AHR1305
Sensor1/9"1/7.5"
Focal Length0.55mm0.58mm
F/No.3.53
TTL3.62mm3.5mm
Lens SizeΦ4.8×2.55mmΦ4.5×2.6mm
Optical Distortion92.10%-35.00%
Image SizeΦ1.73mmΦ2.12mm
ThreadM3×0.15M3.8×0.15
FOV(D*H*V)174°×138.2°×103.4°137.5°×108°×108°


Dimensions:


Medical Lens HR0502A
