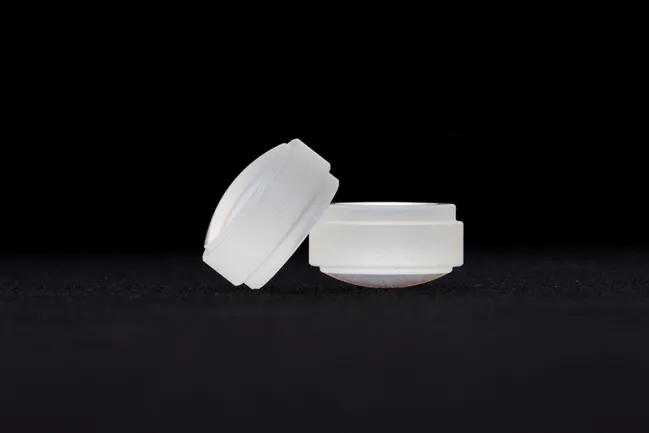

Meniscus Lenses

Attribute:

Primary Materials: Over 120 Visible Materials, Fused Silica

Focal length: ±5mm~1000mm±2%

Thickness tolerance: ±0.2mm

Size: 6mm-300mm

Surface type: λ/10~λ/2

Surface quality: 10/5~80/50

Eccentricity: <3arcmin

Effective aperture: >90%

Chamfer: <0.2*4.5°

Coating: according to customer requirements

Introduction of Meniscus Lenses


One side of meniscus lens is convex, another side is concave. It can be a convergent lens or a divergent lens, which is decided together by refractive index, curvature and radius. The two surfaces of meniscus lenses are in the same direction. Meniscus lenses correct aberrations, eliminate chromatic aberrations and change spherical aberrations. They often combined with other lenses to form an optical system, changing the focal length of extra lenses. Widely used in corrective lenses, condensers for lighting systems, CO2 lasers and infrared optical systems. If the outer arc of the meniscus lens is greater than the inner arc, it can be used as a magnifying glass.


Spherical lens features


Meniscus Lenses


Spherical lens processing types


Plano-convex lenses, double-convex lenses, plano-concave lenses, double-concave lenses, positive meniscus lenses, negative meniscus lenses, flat lenses, single-cap lenses, double-convex double-step lenses


Meniscus Lenses


The meniscus lens can reduce small spherical aberration and can produce the smallest focus of collimated incident light, depending on the relative curvature of the two surfaces, the meniscus lens can be a positive lens or a negative lens. The center of the negative meniscus lens is thinner than the periphery, while the center of the positive meniscus lens is thicker than the periphery.


Meniscus Lenses


Production Capacity Sheet


Category (Diameter)Thickness ToleranceSurface PrecisionSurfaceEccentricityAbrasion Degree
φ2~φ3.5±0.0150.310xMicroscopic test: the center is flawless, and the edge is 20-10120″40-300
φ3.5~φ10±0.0150.345″40-488
φ10~φ25±0.020.315-2030″40-488
φ25~φ40±0.020.3.20-1030″40-488
φ40~φ55±0.020.540-2030″40-488
φ55~φ80±0.020.540-2030″40-300
φ80~φ150±0.031.040-2030″40-300


Application


Glass lenses have a wide distribution of refractive index and dispersion, and have good adaptability to temperature and environment. They are widely used in high-end optical lenses, such as digital cameras, security, automotive, optical communications, laser projection, medical, unmanned machine, AR, etc.


Meniscus Lenses


Standard Optical Coating


We provides high-quality coating services. Our company has successively introduced several Optorun coating machines and SHINCRON sputtering coating machines, with standard &high quality coating technical capabilities. We can customize the coating according to the individual needs of customers, and provide free design and testing


Coating series
Antireflection coating400nm-1000nm, R<=0.5%
High reverse coating420nm-720nm, R>=98%
Metal coatinggold coating, silver coating, aluminum coating etc
Spectro coatingneutral spectro coating, PBS coating, dichroscope coating etc.
Filter coatinglong wave pass filter, short wave pass filter, bandpass filter, narrow bandpass filter etc
Functional coatingwaterproof coating, anti-fouling coating、UV-IR-CUT、super hard coating, EMS anti-static coating, ITO conductive coating etc


Meniscus Lenses


Meniscus Lenses

Why Choose Us?





  • Why Choose Us

    Advanced technology research and development capabilities


    The company has continuously introduced outstanding talents at home and abroad, and has a research and development team composed of advanced technical talents such as doctoral and master students and senior professional engineers. Independent research and development, with a total of more than 40 patents for technical inventions and utility models related to optical lenses, lenses and instruments.


    With strong R&D capabilities, advanced production equipment and strict quality control system, our lens series has expanded to a wide range of industrial-grade products, covering 1/7.5", 1/4", 1/3", 1/1.8", 2/3” to 1.2” and even larger, there are corresponding solutions to support.


    The company's lens and lens products cover the fields of security, machine vision, medical, automotive, sights, smart home and sports cameras. According to customer needs, we can provide ODM services and exclusive customized research and development.

  • Excellent manufacturing capacity

    Excellent manufacturing capacity


    HR Optoelectronics always adheres to high-standard product quality requirements to provide customers with comprehensive solutions for optical products, pays attention to product quality, and is fully equipped with precision testing instruments and high-end production equipment. Lens, lens and instrument design, research and development, processing, and assembly have a complete production chain and sufficient production capacity, and each link is checked layer by layer.


    The imported new Cologne sputtering coating machine is used, which can effectively improve the accuracy of the lens and the uniformity of the transmittance of the film layer; on the detection instrument, the eccentricity detection, surface detection, and coating curve detection are all imported or domestically produced. , to ensure the validity of inspection data and product quality and product yield, thereby improving production efficiency. The complete facilities and the complete personnel provide a strong guarantee for our manufacturing.

  • Strict inspection process

    Strict inspection process


    The company has passed the international quality system certification ISO 9001:2015 and the automotive industry quality management system certification IATF 16949, and has established a rigorous, complete and high-standard quality control system. From procurement to production to after-sales quality control, there is a clear and definite standard system. The company follows the concept of customer orientation and strict process control, and runs quality control procedures throughout the entire life cycle of products to ensure that from raw materials to after-sales service. quality. The company's internal management takes 5S as the standard, and the quality control of product production takes 6sigma as the goal, striving to win the support of customers with the most stable quality.

  • Perfect supporting services

    Perfect supporting services


    Our departments have a clear division of labor, production and office work are strictly implemented according to 5S standard. Have perfect pre-sales and after-sales service. With advanced technology R&D capability, high-quality manufacturing capability and strict inspection process, a strong manufacturing, quality control and operation service system has been built, which provides a strong guarantee for the sustained and high-speed development of enterprises.

Workshop equipment

We are looking forward to establishing long-term cooperative relations with customers around the world on the basis of trust and mutual benefit. Please feel free to contact us for further information. We sincerely welcome you to our factory.
